Description
Description

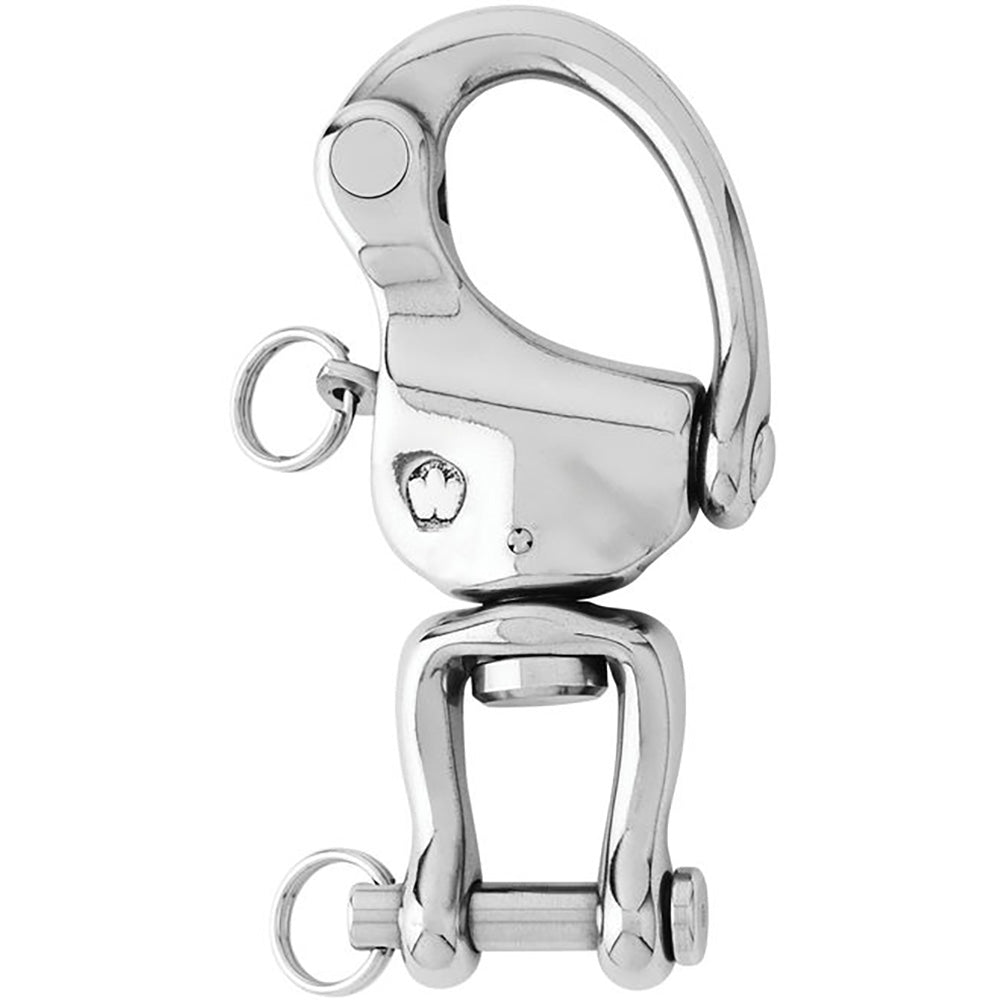

HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.919 / (g) 417

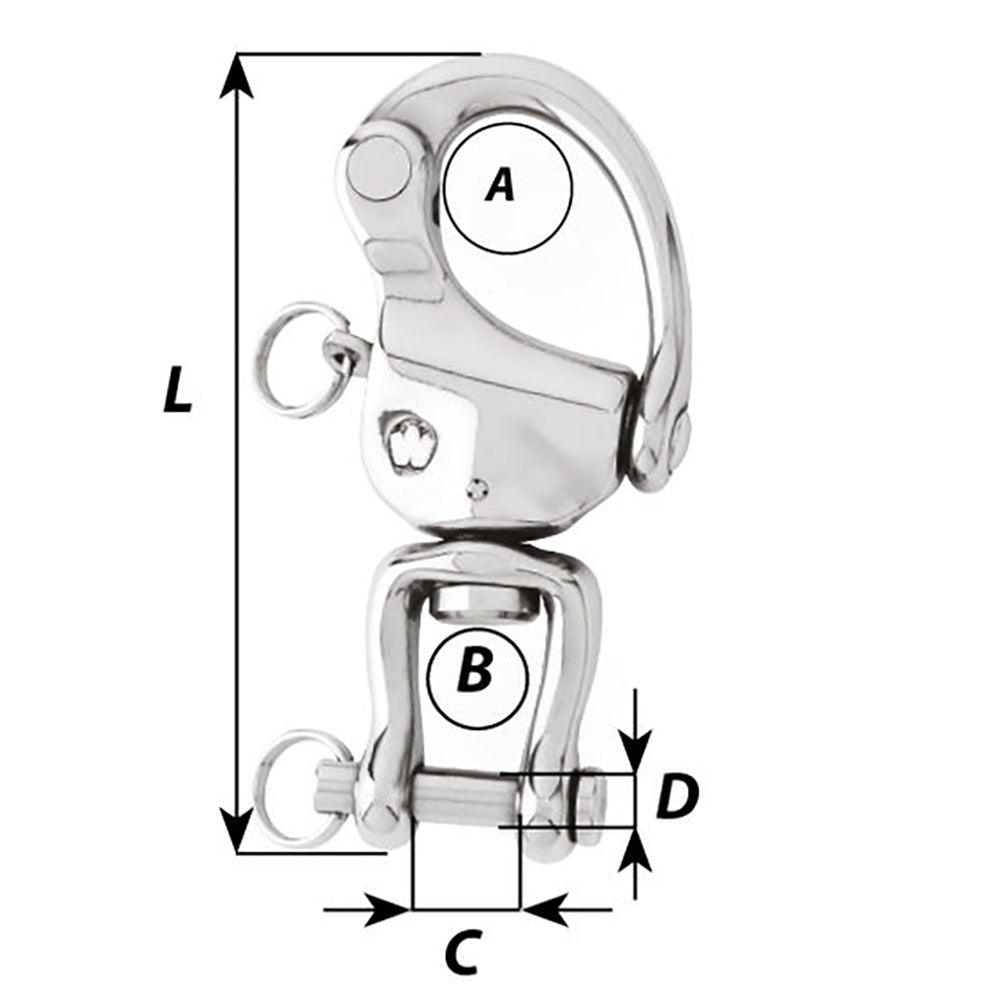

Dimensions:
- A: (inch) 1 1/32" / (mm) 26
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 45/64" / (mm) 18
- D diameter: (inch) 7/16" / (mm) 11
- Length: (inch) 4 23/32" / (mm) 120
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
