Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16" [1424W]
Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16" [1424W] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16" [14...
Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16" [1424W] is backordered and will ship as soon as it is back in stock.
Description
Description

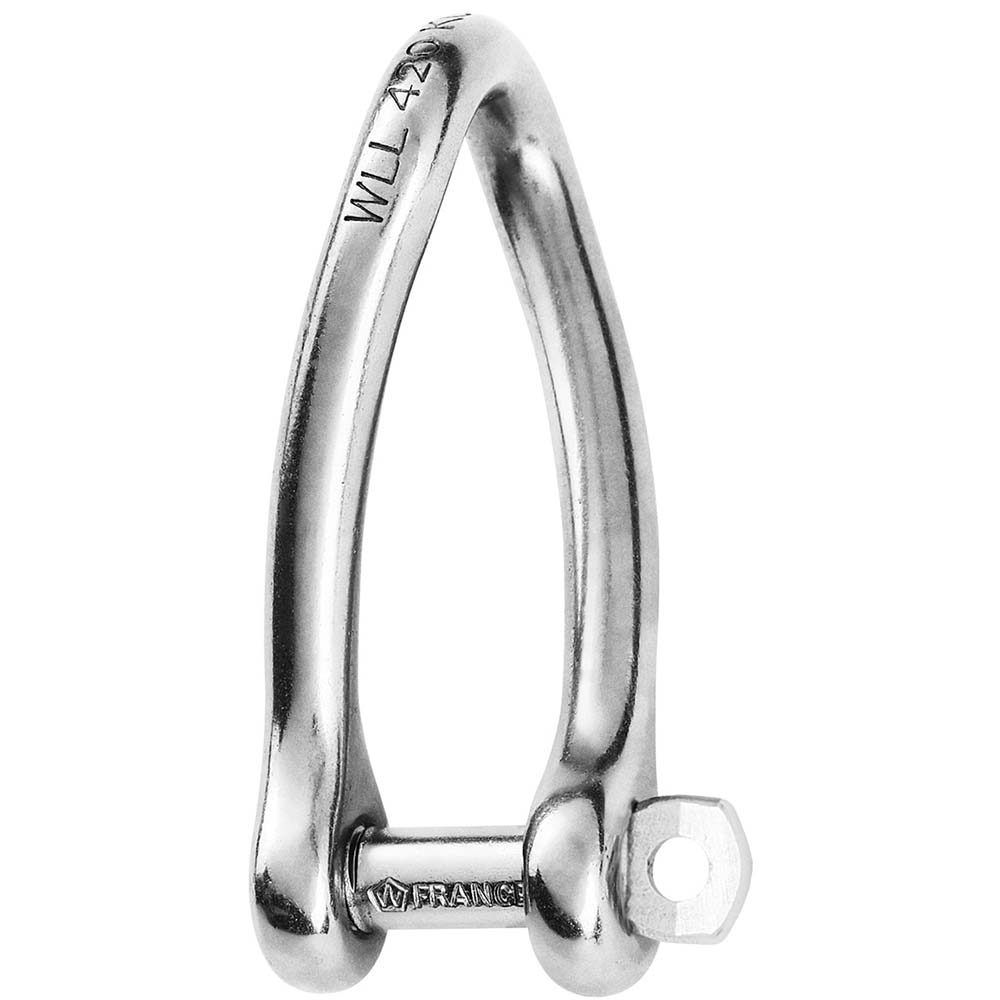

Captive Pin Twisted Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin twisted shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loose due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- Part #1424 is not suitable for lifting applications
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- Breaking load (lb) 8150
- Weight (lb) 0.198

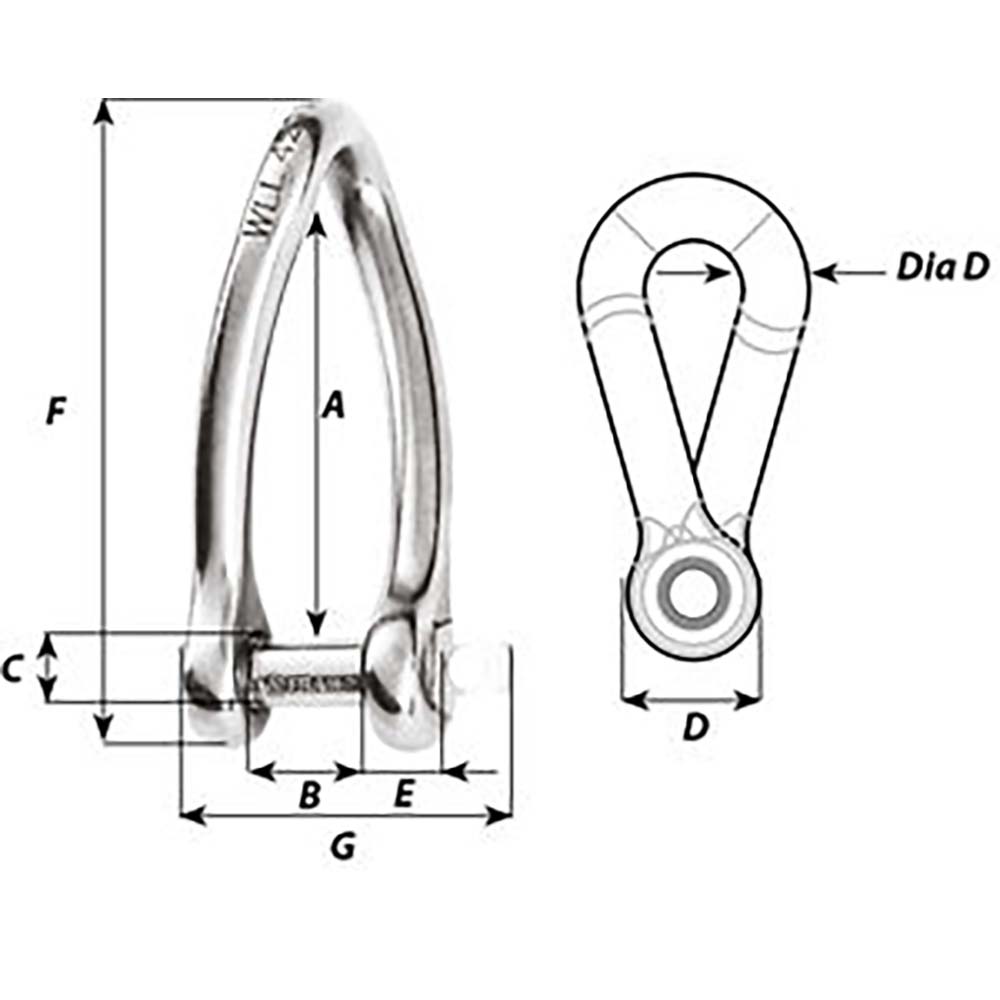

Dimensions (see 2nd image):
- A (inch) 2-21/64"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 45/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 3-5/32"
- G (inch) 1-21/32"
