Wichard Captive Pin D Shackle - Diameter 10mm - 13/32" [1405W]
Wichard Captive Pin D Shackle - Diameter 10mm - 13/32" [1405W] is backordered and will ship as soon as it is back in stock.
Description
Description

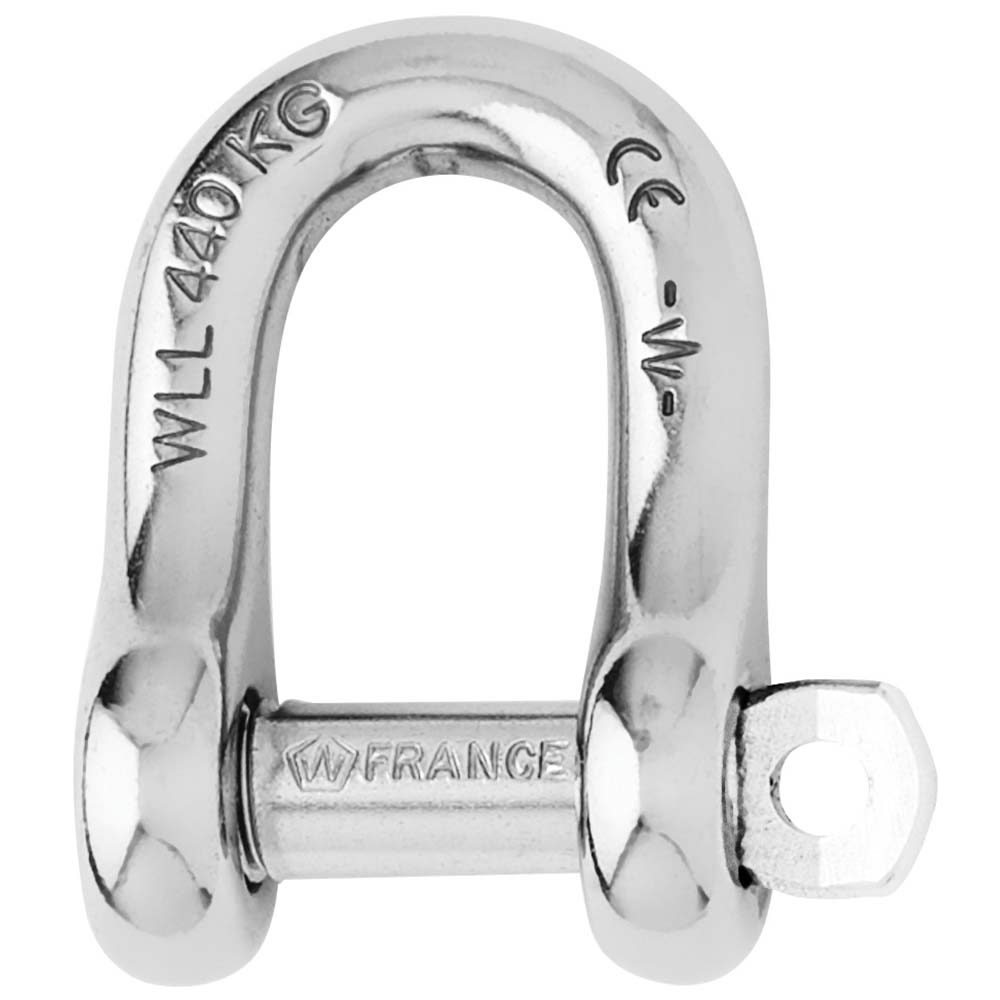

Captive Pin D Shackle - Diameter 10mm - 13/32"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 2290
- Breaking load (lb) 11460
- Weight (lb) 0.251

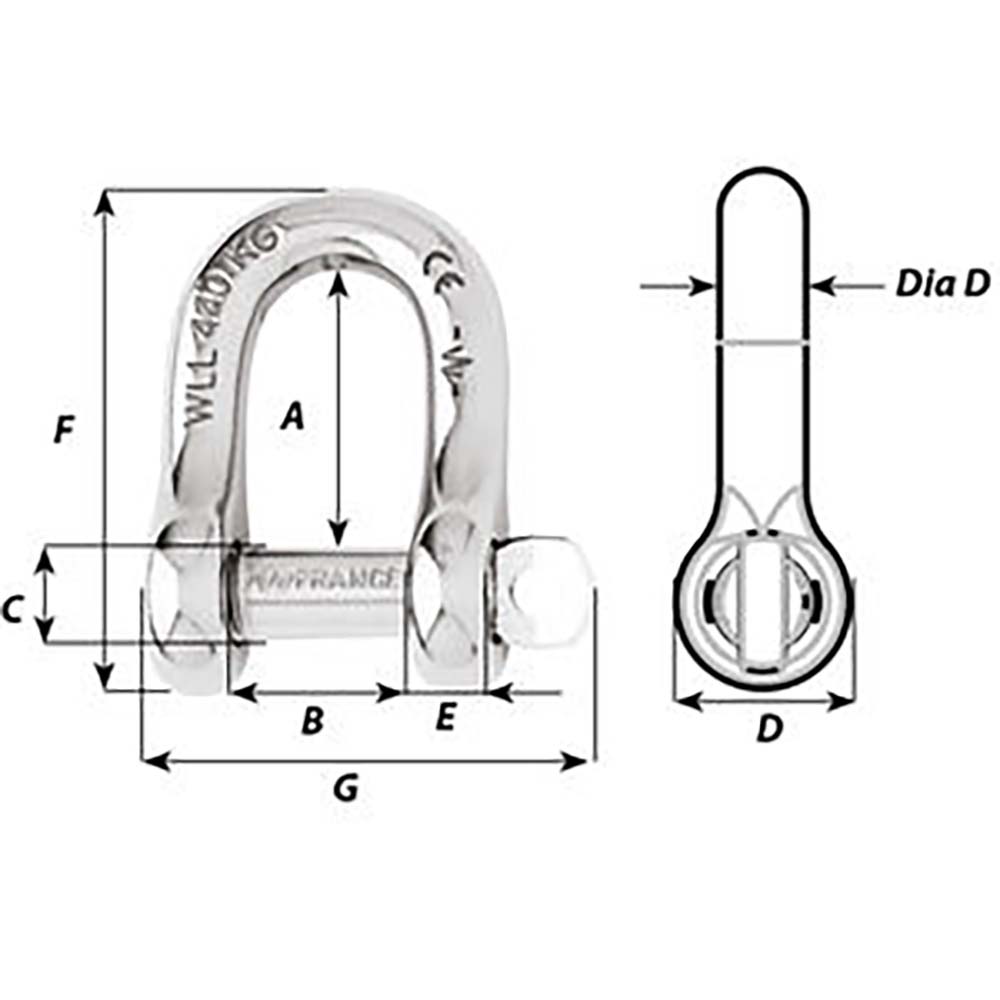

Dimensions (see 2nd image):
- A (inch) 1-19/64"
- B (inch) 25/32"
- C (inch) 7/16"
- D (inch) 53/64"
- D diameter (inch) 25/64"
- E (inch) 23/64"
- F (inch) 2-9/32"
- G (inch) 2-3/32"
