Description
Description

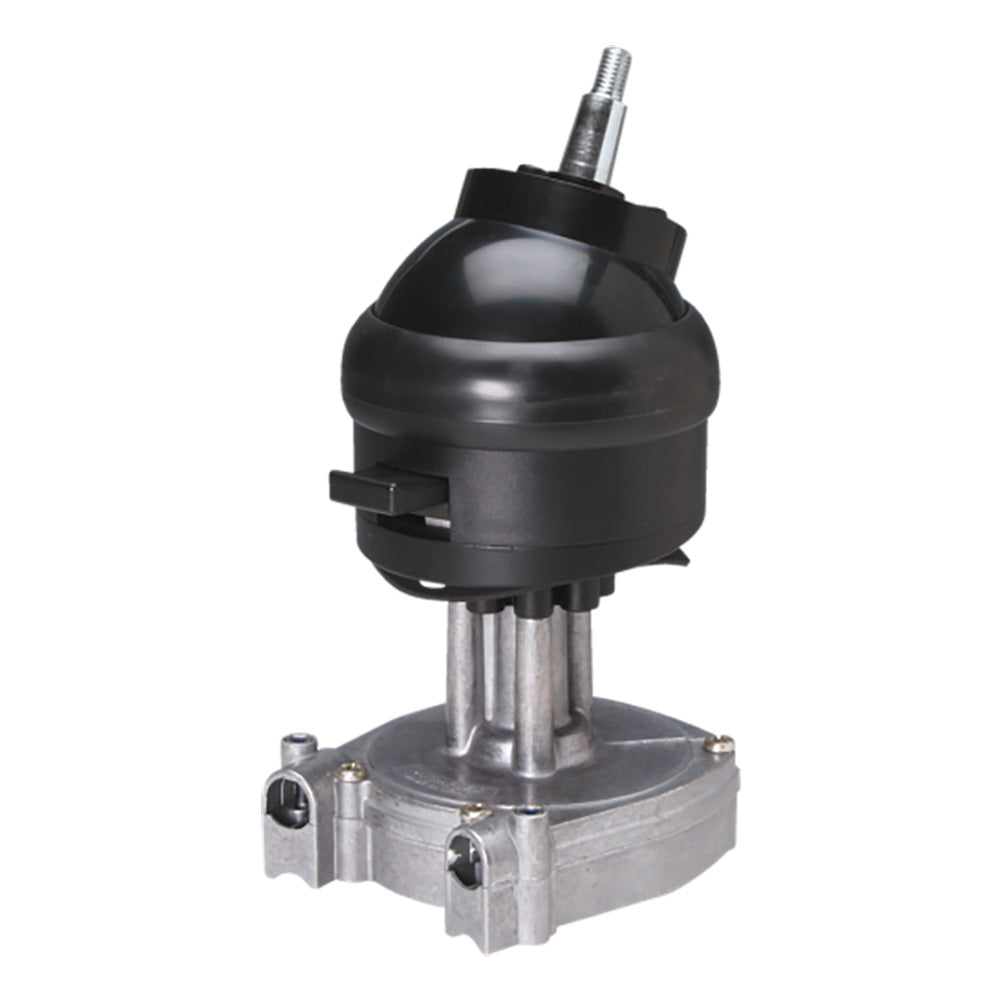

T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately
T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.
Features:
- X52 Tilt Mechanism sold separately
- Tilt range of 48° and five locking positions
- Fast connect, simple installation
- The tilt device eliminates under-dash movement
- Standard 3/4” tapered shaft – stainless steel
- All stainless steel cable output ends
- Corrosion resistant materials
- T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
- X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
- For boats faster than 50 mph, our hydraulic steering systems are recommended
- Optional steering wheel
- Engine connection kits
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
Specifications:
- M66 steering cable stroke: 228 mm (9")
- Lock-to-lock steering wheel turns: Approx. 3,8
- Max. dash depth: 25,4 mm (1")
- Max. steering wheel diameter: 406 mm (16")
- Min. steering cable bend radius: 200 mm (7.9")
*Tilt Mechanism Sold Separately
