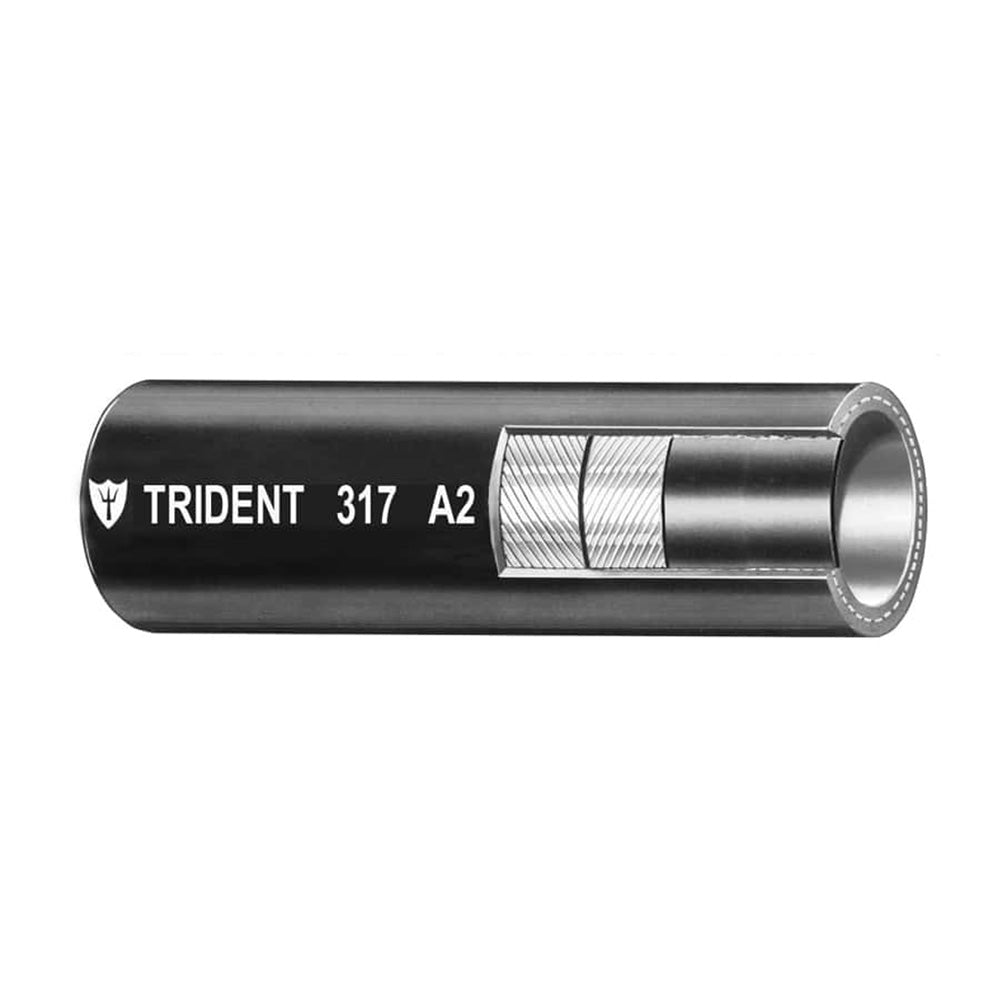

Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]
Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sol...
Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT] is backordered and will ship as soon as it is back in stock.
Description
Description
5/8" Type A2 Fuel & Vent Line Hose - Black - Sold by the Foot
Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.
Features:
- Sold by the foot
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also provides excellent bend-ability
- NMMA Type Accepted & CE certified
Applications:
- Fuel Hose for vent and diesel distribution
- For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube: Nylon Internal Barrier, NBR
- Cover: NBR/PVC Blend
- Reinforcement: Polyester 2 spiral
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
Specifications:
- Inner Diameter: (inch) 5/8" / (mm) 15.9
- Outer Diameter: (inch) 0.960 / (mm) 24.4
- Burst Pressure: (psi) 200 / (mpa) 1.38
- Working Pressure: (psi) 50 / (mpa) 0.34
- Bend Radius: (inch) 3" / (mm) 76.2
- Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72
*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- ID Diameter (inches): 5/8"
- Length (Feet): Sold By The Foot
- Box Dimensions: 1"H x 1"W x 1"L WT: 0.27 lbs
Quick Guide (pdf)
