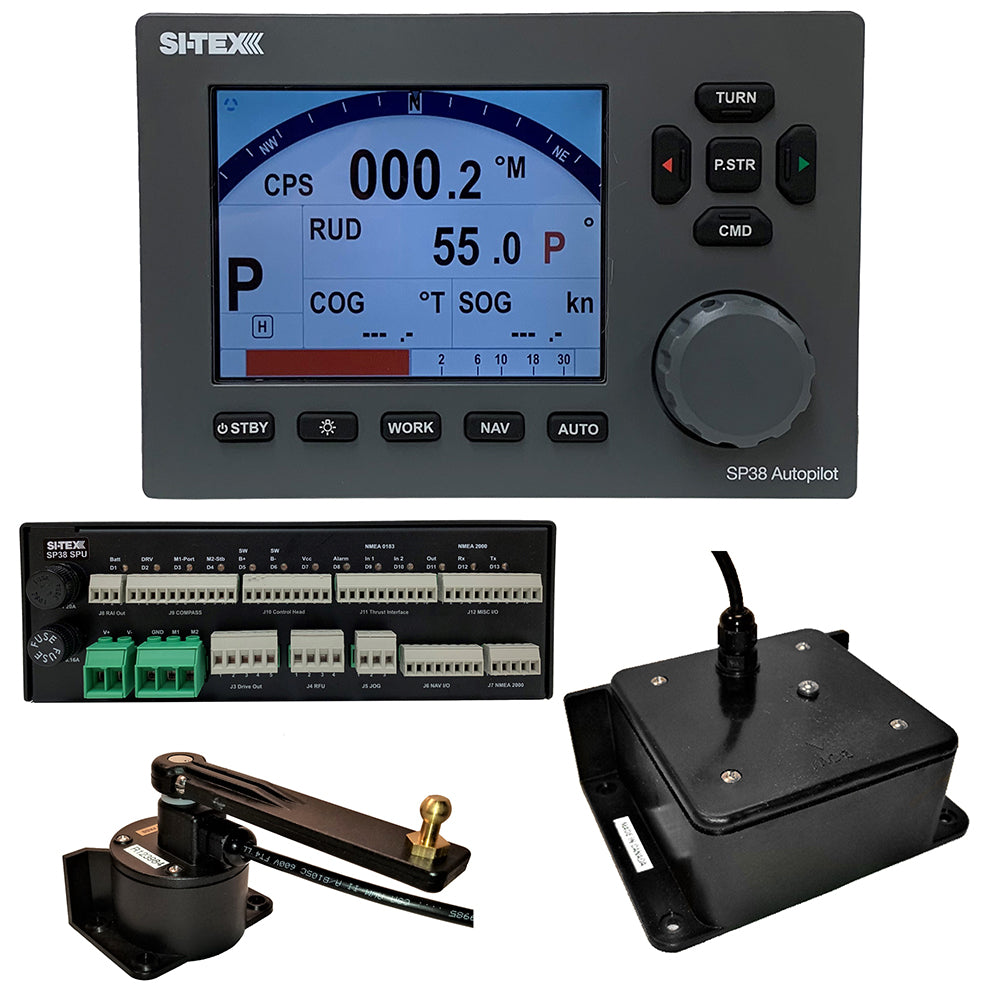

SI-TEX SP38-2 Autopilot Core Pack Including Flux Gate Compass Rotary Feedback, No Pump [SP38-2]
SI-TEX SP38-2 Autopilot Core Pack Including Flux Gate Compass Rotary Feedback, No Pump [SP38-2] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
SI-TEX SP38-2 Autopilot Core Pack Including Flux Gate Compass Rotary Feedback, No Pump [SP38-2] is backordered and will ship as soon as it is back in stock.
Description
Description
SP38-2 Autopilot Core Pack Including Flux Gate Compass & Rotary Feedback, No Pump
Features:
- IST – Intelligent Steering Technology provides superior vessel steering capability
- ADAPTIVE steering for sea conditions and varying vessel speeds
- AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
- NMEA 2000, ETHERNET, and NMEA 0183 interface
- Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
- WORK Mode suitable for Fishing Boats, Towboats and Workboats
- PRC- Proportional Rate Control feature provides gentle smooth steering response
- Multi-Station capability with security station lock
- SUNLIGHT viewable Color 5.7” LCD display
- NAV Mode provide adaptive precise track steering
- ALC – Automatic Leeway Compensation for Drift, Tide & Wind
- Fully compatible with onboard instruments and steering systems
- Optional Z-Drive interface allows 360 Azimuth drive interface
- Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
- Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
- Standard with Flush Mount kit, Optional Swivel mount bracket
- IP67 Waterproof – Control Head, TS4, NF4 and WS4
- RoHS & CE compliance for EMI and RFI immunity
Additional Features:
- 9 level backlit LCD display
- LCD Display switches to Red Night Palette to protect Operators night vision
- Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
- Multiple steering parameters for Fast cruise, Slow cruise and Work modes
- Simple to use course knob with mechanical detent
- Multi-station capability with security station lock
- Automatic trim
- Adjustable yaw, turn rate and rudder settings
- PORT and STBD dodge buttons for collision avoidance
- Output for optional analog rudder angle indicator, up to 4 stations
- Fully compatible with onboard NMEA N2K instruments and most steering systems
Specifications:
- Operating Voltage: 10 to 30 VDC
- Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
- Network: NMEA 2000 & Ethernet
- Navigational Interface: NMEA 0183 input/Output
- NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
- Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass
- Course Resolution: 1°
- Course Detection: 0.5°
Specifications:
- Type: Parts
- Box Dimensions: 7"H x 18"W x 18"L WT: 16.8 lbs
Quick Guide (pdf)
