Scanstrut WD-RAD-01 Top Plate f/PowerTower Radar Mounts - 4 [WD-RAD-01]

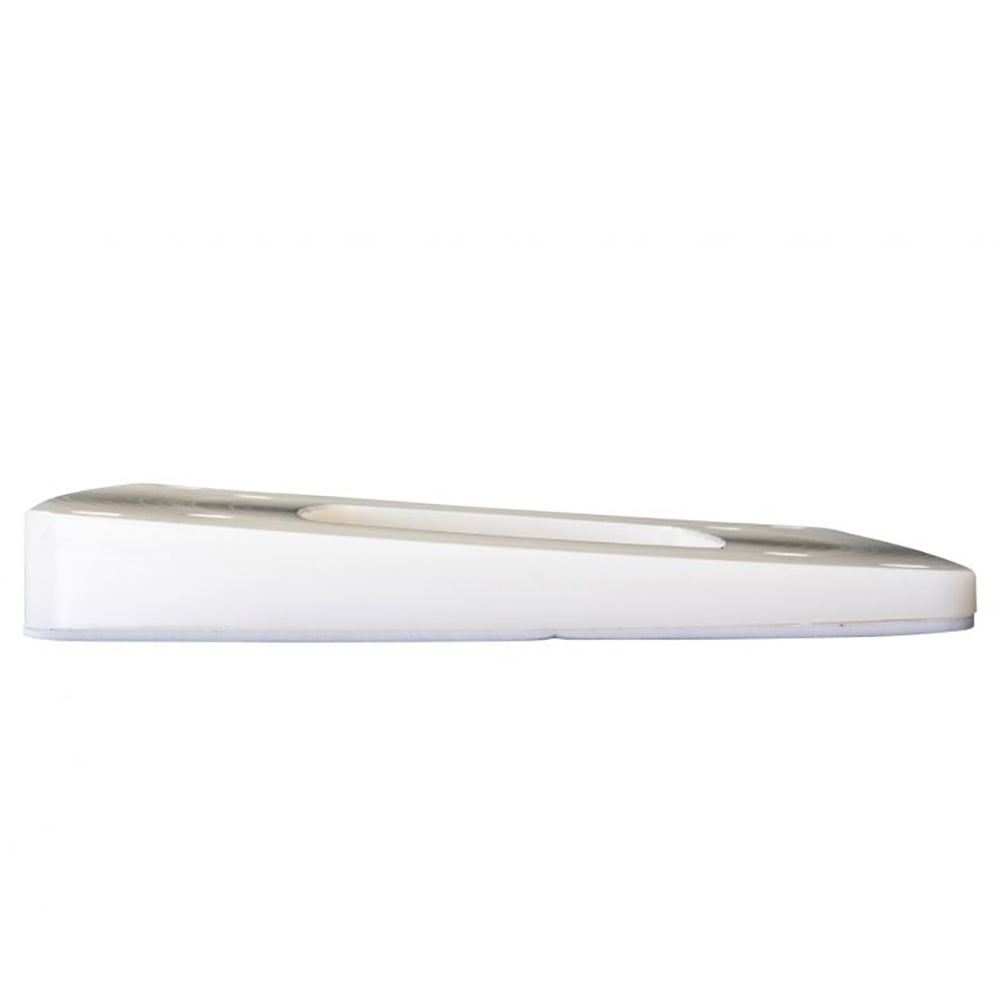

WD-RAD-01 Top Plate f/PowerTower® Radar Mounts - 4°

Enhance the performance of your radome with the rugged, marine-grade, UV stable wedge that angles the radar down 4° below horizontal to provide a level horizon for your radar when the boat is underway.

Mounts between PowerTower® mount and base of radar.

Compatible with:

• Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars
• Humminbird - AS 21RD4KW, HB 2124 CHIRP radars
• Lowrance - HALO20, HALO20+, HALO24, LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Raymarine - QUANTUM (Q24C), QUANTUM 2 (Q24D), RD218, RD418/RD418HD, RD424/RD424HD radars
• Simrad - DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12, GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex - MDS-12 radar

Features:

• Enhance the performance of your radome with the Universal Scanstrut 4° radar base wedge
• 4° Base Wedge for mounting under PowerTower®
• A rugged, marine-grade, UV stable wedge
• Compatible with radomes from most radar manufacturers

Technical Specifications:

• Material - Marine Grade Polymer
• Dimensions (L x W ) - 11.10" x 9.09"
• Angle - 4°

In the Box:

• Wedge
• Base seal
• Instruction manual

*Sold as an Individual

Specifications:

• Construction: Polymer
• Type: Wedges
• Height: N/A
• Box Dimensions: 2"H x 9"W x 11"L WT: 2 lbs
• UPC: 5060114795945
