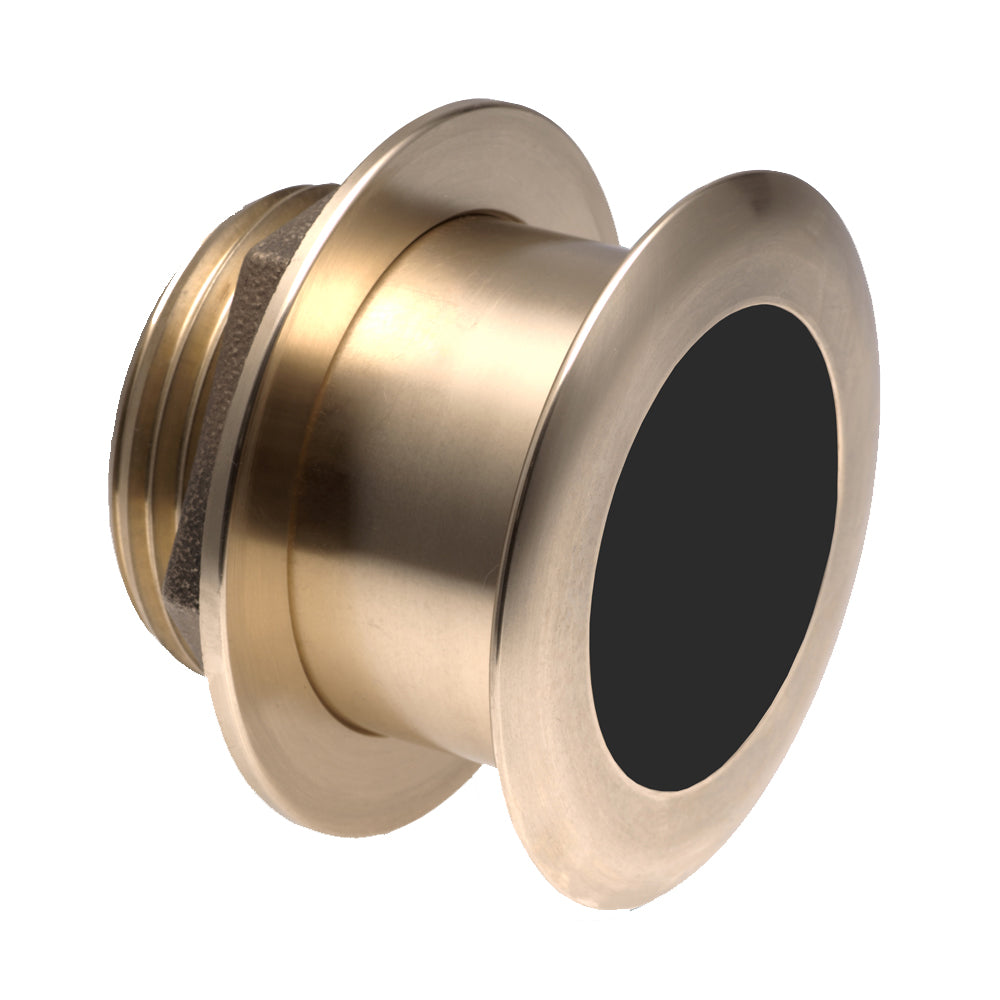

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1...
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321] is backordered and will ship as soon as it is back in stock.
Description
Description
B175H-W 1KW Bronze Thru Hull 20° Tilted Element
Installation: Thru Hull
Material: Urethane
Power (RMS): 1kW
Max Depth(ft): 800
Frequency (KHz): 150-250
Records: Depth and Temperature
Approved Hull Material: Fiberglass / Wood
Cable Length (ft/M): 6ft/2m
Supported deadrise: 16-24° Deadrise
ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 6'
- Box Dimensions: 9"H x 10"W x 12"L WT: 9.8 lbs
- UPC: 723193796276
