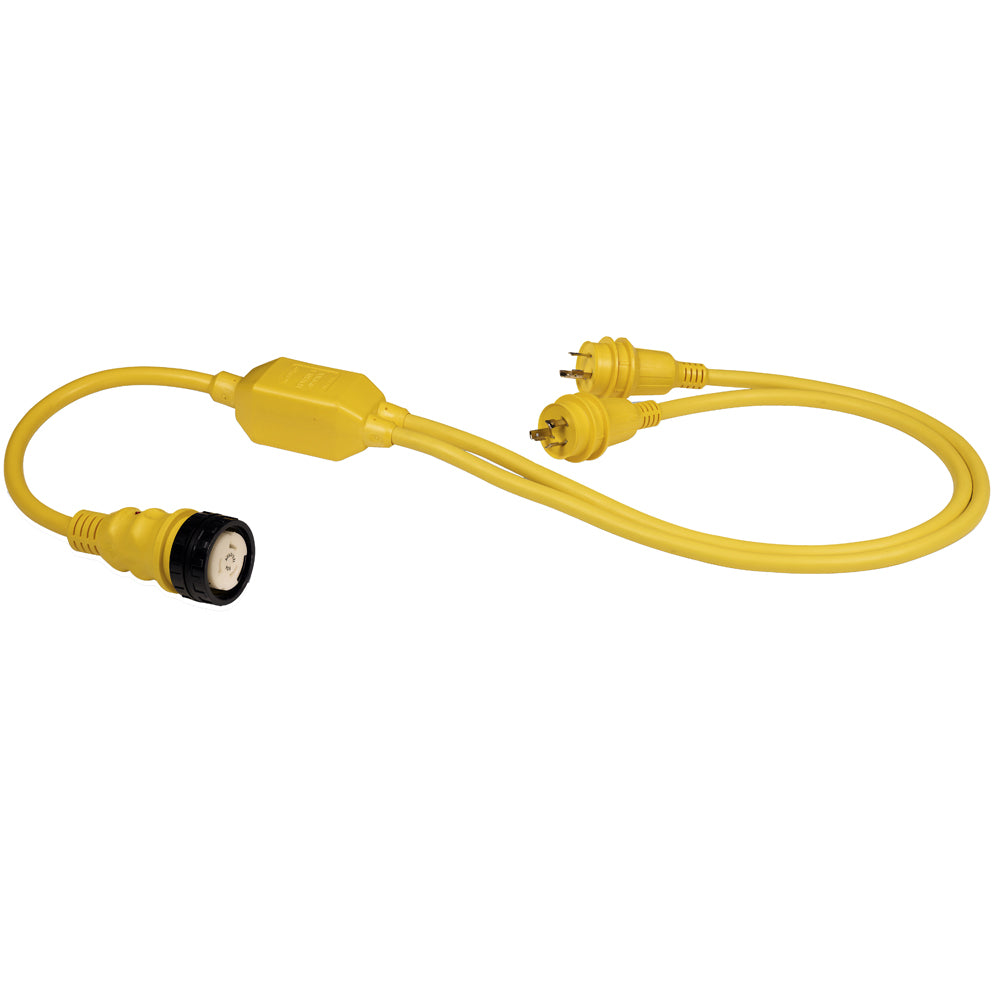

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable [RY504-2-30]
Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable [RY504-2-30] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" C...
Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable [RY504-2-30] is backordered and will ship as soon as it is back in stock.
Description
Description
Reverse "Y" Adapter
The Reverse "Y" Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.
Boat Side: Female Connector
- 50A 125/250V
- w/Sealing Collar System
- Attaches to boat inlet or cordset
Dock Side: Male Plug
- 2-30A 125V
- Locking
- Attaches to dockside receptacle or cordset
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Type: Y-Adapter
- Box Dimensions: 5"H x 12"W x 13"L WT: 7.4 lbs
- UPC: 093344501357
Quick Guide (pdf)
