Garmin Airmar R109LHW 2kW 38-75kHz 150-250kHz Thru-Hull Transducer [010-12182-20]
Garmin Airmar R109LHW 2kW 38-75kHz 150-250kHz Thru-Hull Transducer [010-12182-20] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
Description
Description

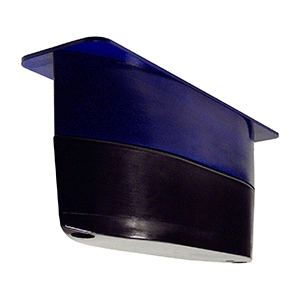

Airmar R109LHW 2kW 38-75kHz & 150-250kHz Thru-Hull Transducer
This plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.
A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 8,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Chirp: Low/High Wide
- Cable Length (Feet): 49'
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Pins: Bare Wires
- Box Dimensions: 14"H x 17"W x 28"L WT: 35 lbs
- UPC: 753759123567
Owner's Manual (pdf)
Brochure (pdf)
