Description
Description

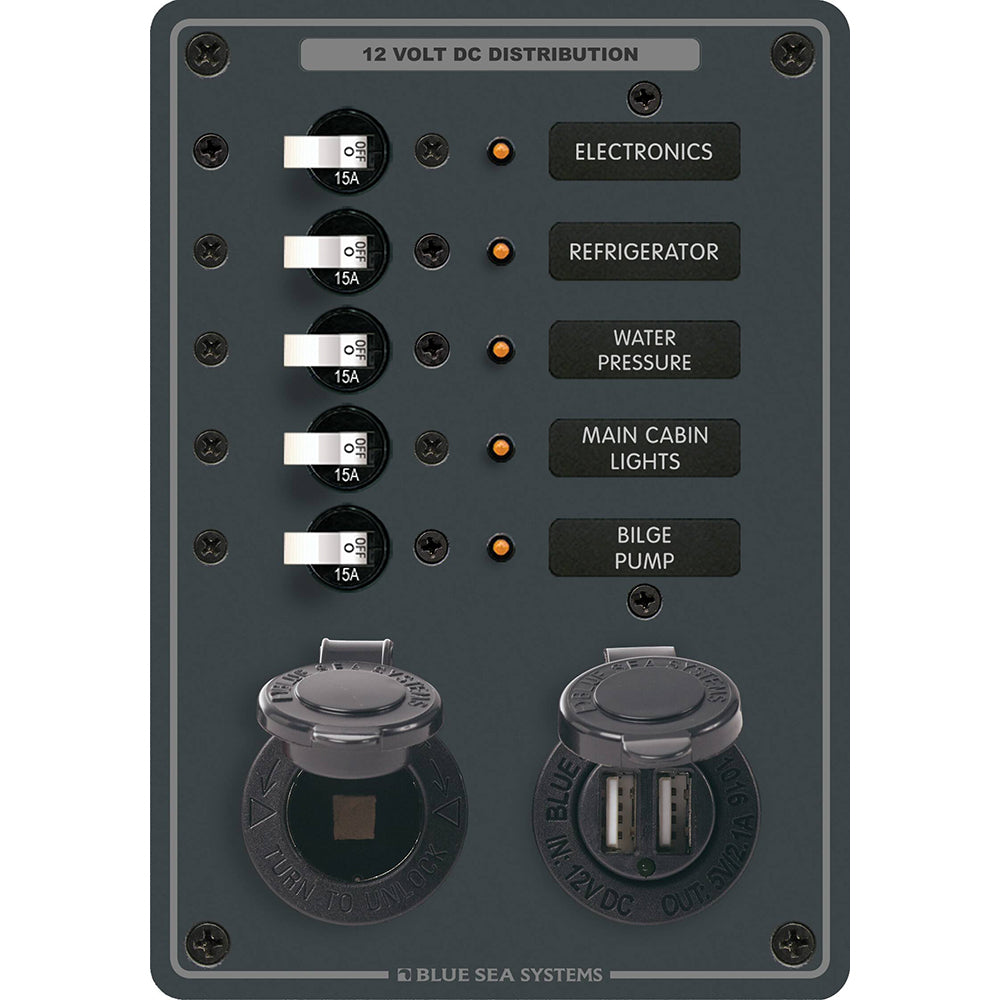

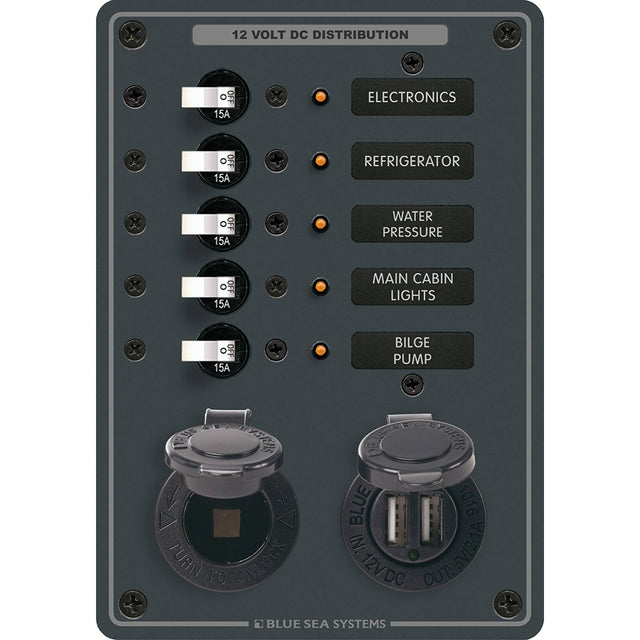

8120 - 5 Position 12V Panel w/Dual USB & 12V Socket
Part of the Blue Sea Systems Battery Management Panels. Distribute current from a high amperage source to lower amperage circuits.
Features:
- ON-indicating LEDs
- Backlit label positions
- All positive, negative, and grounding buses installed, fully pre-wired
Specifications:
- Positions - Five (5)
- Nominal Voltage - 12V DC
- Maximum Amperage - 50A
- Circuit Breaker Type - Magnetic Hydraulic - Trip Free
- USB Output - 12/24V Dual USB
- Socket Output - 12V Dash socket
- Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm)
In the Box:
- 8120 Panel
- Instruction Manual
*Sold as an Individual
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 5
- Voltage: 12
- Box Dimensions: 5"H x 7"W x 12"L WT: 1.95 lbs
- UPC: 632085081201
Owner's Manual (pdf)
