Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312]
Blue Sea 7312 COTS Military Grade A-Series 15 Amp [7312] is backordered and will ship as soon as it is back in stock.
Description
Description

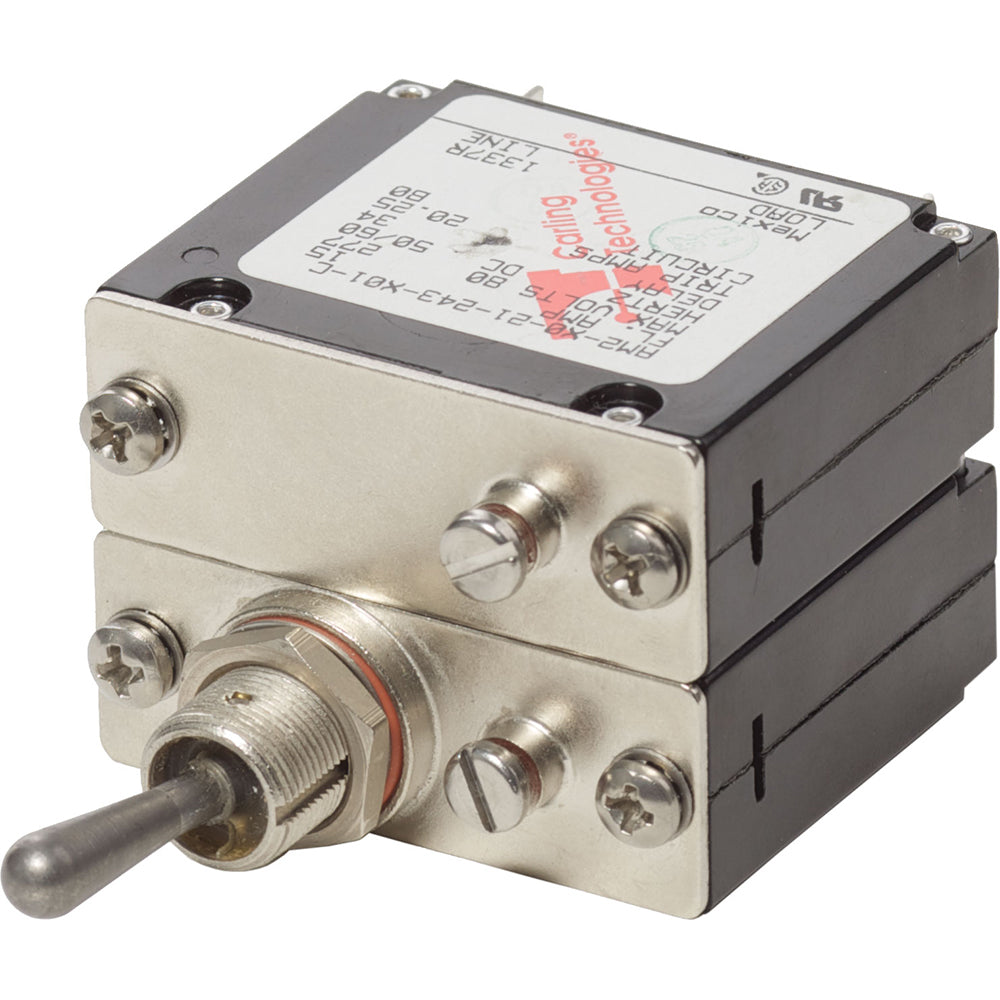

7312 COTS Military Grade A-Series 15 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 15A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
Specifications:
- Amperage: 15a
- Box Dimensions: 2"H x 3"W x 5"L WT: 0.39 lbs
- UPC: 632085173128
