Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A [4161]
Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A [4161] is backordered and will ship as soon as it is back in stock.
Description
Description

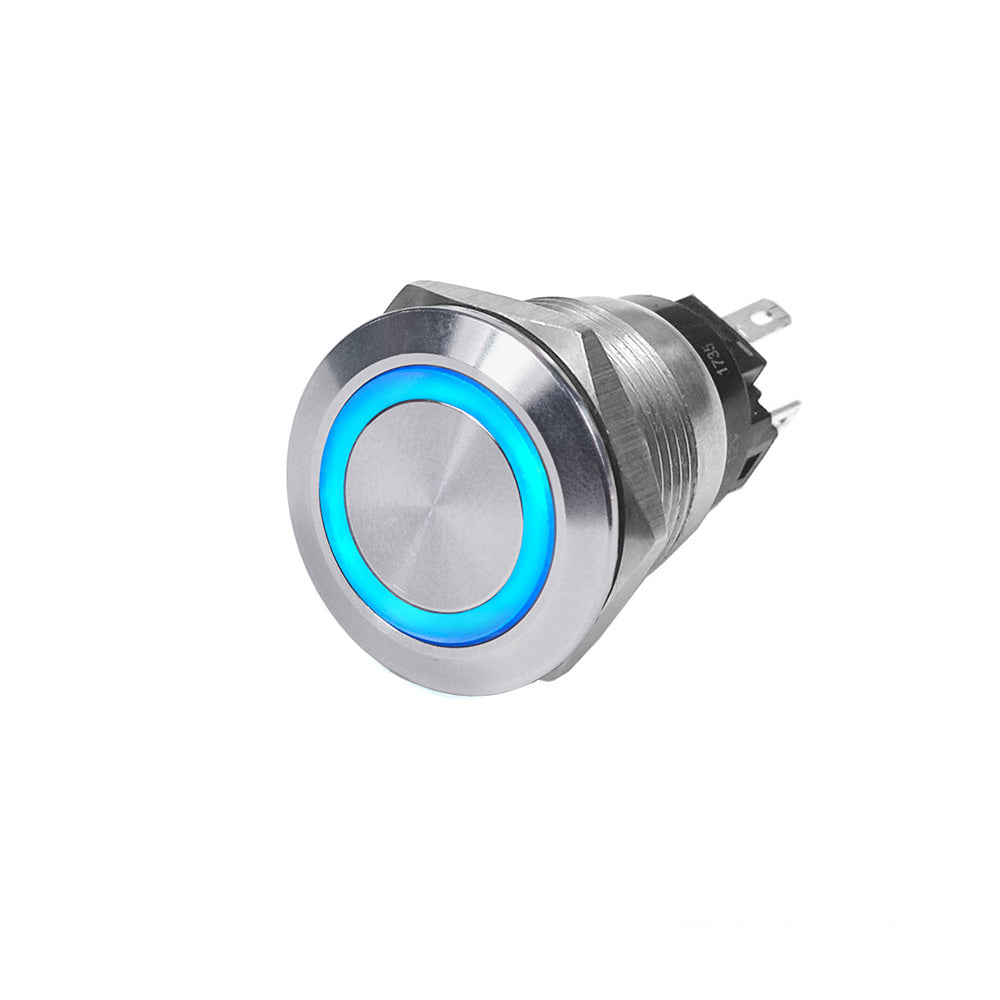

4161 SS Push Button Switch - Off-(On) - Blue - 10A
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
- Action: OFF-(ON)
- Amperage: 10A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 70° C
- Minimum Storage Temperature: -55° C
- Maximum Storage Temperature: 85° C
- Illumination: Independent – Separate contacts for LED power
- Mounting Hole: 19mm
- Switching Cycles: 18,000
- Termination: 5 – 0.110inch Quick Connect terminals
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Color: Stainless
- Action: (ON)-OFF
- Box Dimensions: 2"H x 3"W x 5"L WT: 0.1 lbs
- UPC: 632085041618
