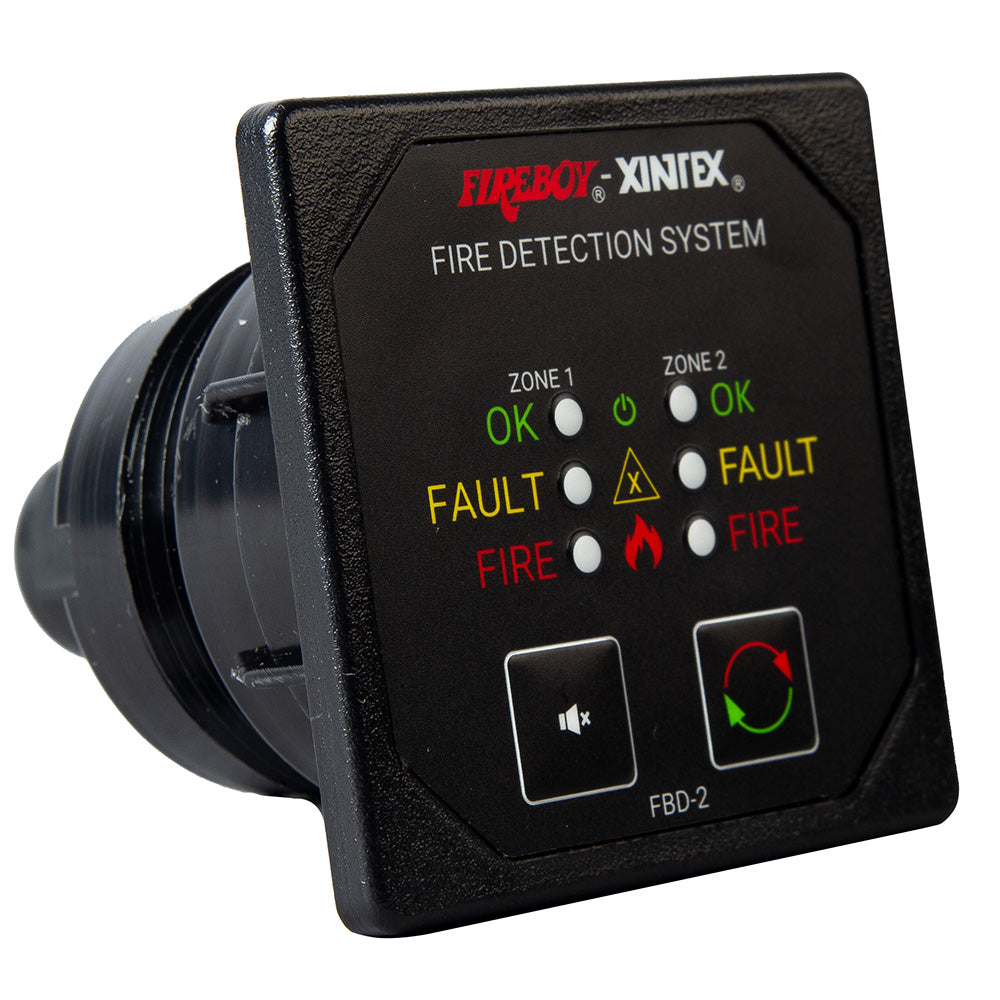

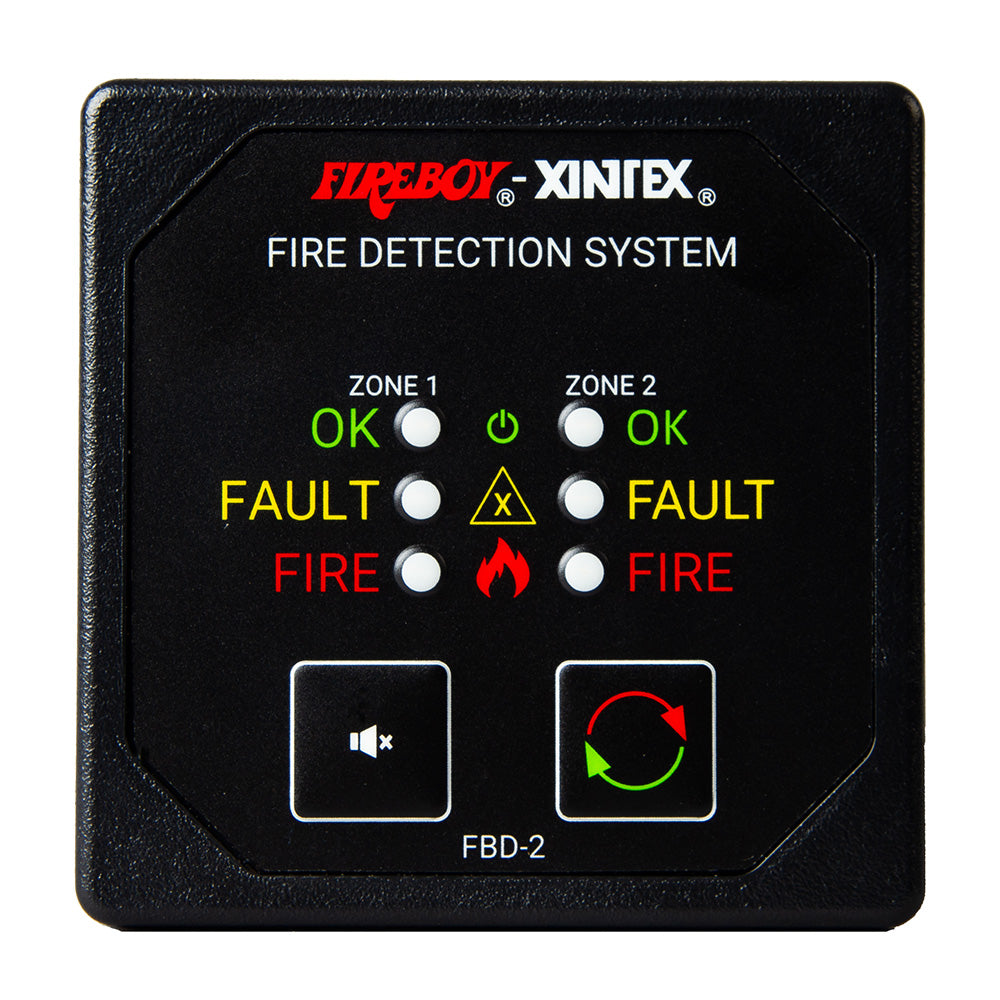

Fireboy-Xintex Two Zone Detection Alarm Panel - 2-5/8" Display - 12/24V DC [FBD-2-R]
Fireboy-Xintex Two Zone Detection Alarm Panel - 2-5/8" Display - 12/24V DC [FBD-2-R] is backordered and will ship as soon as it is back in stock.
Shipping & Returns
Shipping & Returns
✓ Fast Shipping
✓ Secure Checkout
✓ Manufacturer Warranty
✓ Expert Customer Support
Questions?
Contact FishTechDirect before ordering.
Need Help Choosing?
Need Help Choosing?
Not sure if this product is right for your boat? Contact FishTechDirect before ordering and our team will help you choose the right equipment.
Why Buy From FishTechDirect?
Why Buy From FishTechDirect?
- Authorized Marine Electronics Dealer
- Fast Shipping on Qualifying Orders
- Expert Product Support
- Secure Checkout
Manufacturer Warranty
Manufacturer Warranty
This product is covered by the manufacturer's warranty. Please refer to the owner's manual or manufacturer for warranty terms. FishTechDirect is available to assist with warranty questions and support.
Fireboy-Xintex Two Zone Detection Alarm Panel - 2-5/8" Displa...
Fireboy-Xintex Two Zone Detection Alarm Panel - 2-5/8" Display - 12/24V DC [FBD-2-R] is backordered and will ship as soon as it is back in stock.
Description
Description
Two Zone Detection & Alarm Panel - 2-5/8" Display - 12/24V DC
Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)
Features:
- Visual and audible indications of a fire or fault
- Water resistant display
- Voltage and EMI protected
- Reverse polarity protected
Specifications:
- Supply Voltage: 9-32V DC
- Zone Loop Voltage: 24V DC (regardless of input voltage)
- Minimum Alarm Current: 15mA
- Maximum Current Per Zone: 400mA
- Maximum Sensors Per Zone: 8
- EOL Resistor: 5.6kΩ
- Potential Free Transistor Output (Fault, Alarm): 50V max
- Relay Output (Buzzer): 2A
Owner's Manual (pdf)
