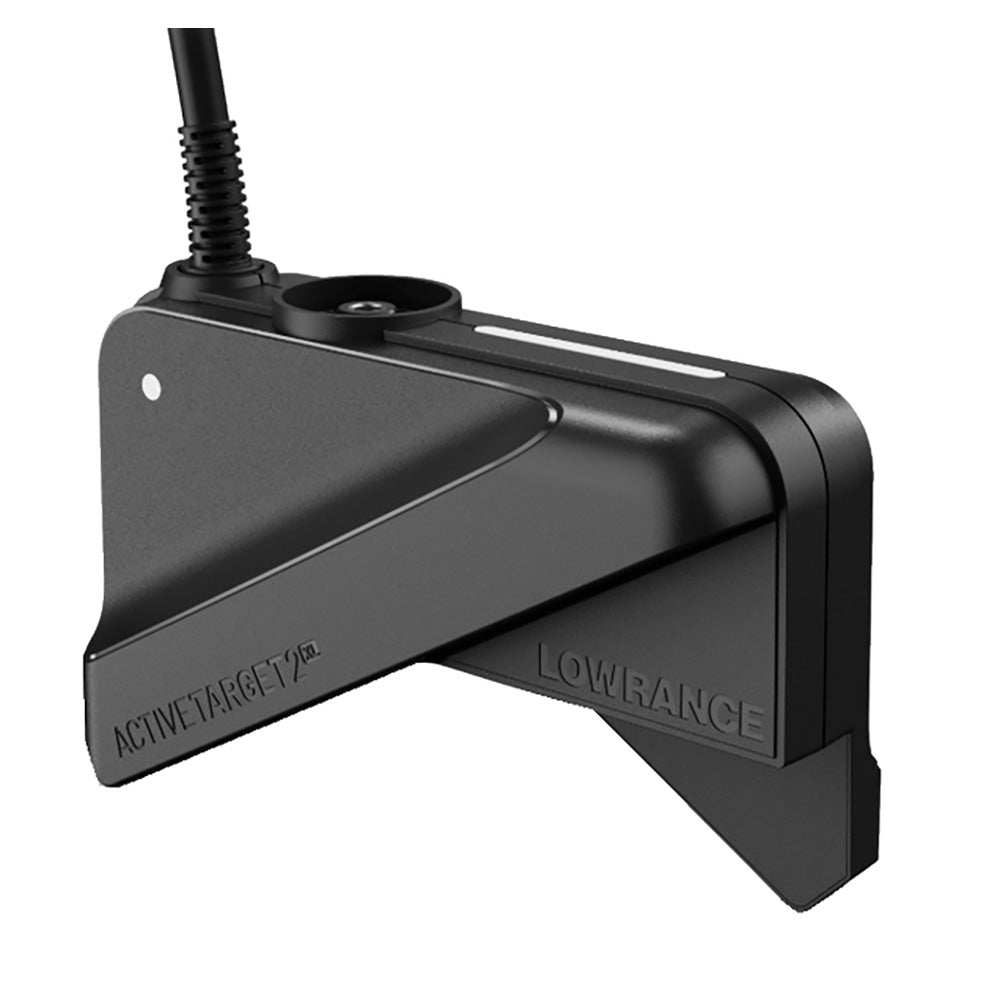

Lowrance ActiveTarget 2 XL Transducer Only w/25' Cable [000-16489-001]

ActiveTarget 2 XL Transducer Only with 25' Cable

With surface-to-surface 180° views, meet the world’s clearest and most complete live sonar.

Best-In-Class Resolution

Our live sonar resolution was already best in class. Well, now it’s even sharper. The new XL transducer delivers the clearest possible view of fish and bait movement in real time.

The Largest Field of Vision

Leave nothing unseen with a full 180° live view across Forward, Down, and Scout views – all from a single transducer. Surface-to-surface views utilize the whole display, so you never miss a thing, from the moment your lure drops to the bite itself.

Quick-Switch Views

Why waste time adjusting your gear? A redesigned transducer lets you switch instantly between Forward and Down views from your display. No need to go fishing for your transducer. Just select your preferred view, and fish.

A new bracket – which can be shaft- or motor-mounted* – also makes it quicker and easier to switch into Scout Mode. Once you’re there, quick-reference markers help you choose the right angle for deep or shallow water. With simple tricks like these, it makes it easier to switch between sonar views.

*RECON™ Trolling Motors only, sold separately

Easy Upgrade

ActiveTarget 2 XL is a one-and-done upgrade, with all views available from a single transducer. Anglers can even use their existing ActiveTarget 2 sonar module, reducing the amount of gear required. Simply mount the new XL transducer and cast.

Double-Up with Two XLs

Combining two systems unlocks an industry-first 360° live Scout view around your entire boat*. This truly comprehensive live view means you can select the perfect place to cast without even having to move your boat. Using multiple transducers also allows anglers to run Forward/Down or 180 and Scout views simultaneously, with no need to lift their trolling motor to switch between views.

*HDS® Pro only

Features:

• Best-in-class resolution
• Surface-to-surface 180° live view
• 360° live view in Scout (Requires dual systems. HDS® Pro only)
• 180 (Front-to-back), Forward XL, Down XL, and Scout XL Views
• Switch between Forward XL and Down XL views on your display.
• Improved switching to Scout views
• Quick-reference markers for deep and shallow water (Scout Mode)
• Shaft mount or Motor-mount* (*exclusive to RECON™)
• Compatible with the existing ActiveTarget 2 sonar module
• Compatible with HDS® Pro, HDS® Live, HDS® Carbon & Elite FS®

Technical Specifications:

• Storage Temperature - -22°F to 158°F (-30°C to 70°C)
• Operating Temperature - 32°F to 95°F (0°C to 35°C)
• Dimensions - 7.08" x 4.47" x 2.68"
• Cable Length - 25'

Specifications:

• Cable Length (Feet): 25'
• Chirp: No
• Imaging: Down/Forward
• Mounting Style: Trolling Motor
• Pins: 9
• Speed Included: No
• Temperature: No
• Box Dimensions: 6"H x 11"W x 12"L WT: 5.8 lbs
• UPC: 9420064138968
